Analyze, diagnose, and repair faster with the Autodiagnos™ Pro OBD2 scan tool
For professional technicians who need to diagnose and repair vehicles quickly and accurately, the Autodiagnos™ Pro OBD2 Scanner / Diagnostic System uses some of the most advanced and versatile technology available to quickly diagnose today’s sophisticated vehicles. More than just simply a scan tool, Autodiagnos™ Pro is a complete system that can be updated as vehicles evolve. Designed by engineers who develop assembly line testing tools and diagnostic scan tools for OEMs, Autodiagnos™ Pro is an OBD2 scanner that is engineered and supported in the USA, and that has its key hardware built in the USA as well.
- Service Drive Triage feature provides a comprehensive picture of vehicle health, not just DTCs, but also critical data such as fuel trim and emissions inspection readiness.
- DTCs reported in 20-30 seconds on average, full vehicle scans in under one minute.

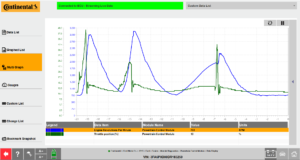

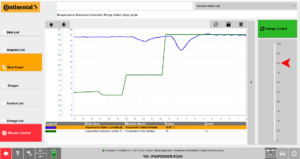

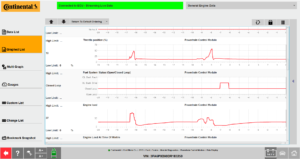

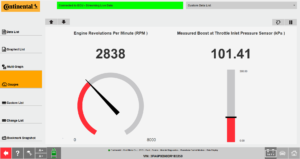

- Fast, accurate data in list, graph, and gauge formats, highly customizable.
- Decodes VIN in seconds.
- Subscription based model – no large hardware investment.
- Use your existing tablet, laptop, or desktop, or bundle with a new tablet when you purchase.
- OBD2 scan history is collected during every OBD2 scan, automatically, saving time and effort.
- Access to vehicle service and repair information such as that provided by Identifix (DIRECT-HIT®), Mitchell 1®, ALLDATA®, and others, right from the scan tool, while performing diagnostics.
- New GM RPO Code feature links directly to GM’s ACDelco® database to help you confirm vehicle equipment (GM vehicles only).
- Link to online resources to research DTCs and vehicle conditions.
- Super-fast, clear, and sharp user interface.
- LEDs confirm connection and VCI communications.
- Audible alarm reminds technicians to disconnect.
- Snapshot replay – automated OBD2 data recording allows for seamless data review, export, and import.
- Technician controls what’s seen on the OBD2 scanner display and how it’s seen.
- Multiple OBD2 reader configurations to meet unique technician and shop needs.
Just-in-time Vehicle Data.
- Real-time streaming OBD2 scan data is displayed in intuitive layouts.
- Regular updates are downloaded from the internet to ensure tool data is up-to-date.
- Software and the operating system is upgradable over the life of the tool providing new features and up-to-date vehicle parc data.
Advanced OBD2 reader functions boost shop productivity
Diagnosing Check Engine Light on 2012 Grand Cherokee
- Certification Meets SAE J1962
- Operating Voltage 4 – 30 Volts DC
- Power Consumption Operating ~100 mA @ 12 Volts DC
- Temperature Range -40 degrees to 140 degrees Fahrenheit (-40° - 60° C)
- Dimensions (H X W X D) 4.56 x 1.96 x 1.06 in (116 x 50 x 27 mm)
- Weight 0.1 lbs (0.450 kg)
- Warranty 1 Year
- External Connectors OBD II male connector (built-in, built user replaceable) and microUSB
- PC connection USB2.0 full speed
- Bluetooth 3.0 Class 1 (100m/325 ft. range)
- Audible alert +90dB beeper
- FCC Codes ID: X3ZBTMOD3 IC: 88228A-MOD3
- LED status indicators: Power on, Device communication, Fail/Error
HS CAN: ISO14229, ISO 15765 full multi-frame message support
KWP2000 ISO 14230 / 9141-2 K Line
J1850 VPW / PWM (GM Class2 / Ford SCP, Chrysler J1850)
Single Wire CAN
- Windows 8 or 10
- ~355MB Hard Drive space (installed)
- Windows 10 Professional
- Intel Pentium 4415Y 1.6 GHz
- 8 GB LPDDR3 (1866 MHz)
- 128 GB - eMMC SSD
- 10" touchscreen 1800 x 1200 (Gorilla glass 3, PixelSense, 217 ppi)
- Intel HD Graphics 615
- Integrated 1080p Web Cam (8 Megapixel (rear), 5 Megapixel (front))
- 802.11ac Wireless LAN | Bluetooth 4.1
- 2W stereo speakers with Dolby Audio Premium
- Up to 9 Hours Battery Life
- Trusted Platform Module (TPM 2.0) Security Chip
- Silver (Magnesium alloy)
- Connectivity: 1 ea. USB-C 3.1 | Surface Connect | 3.5 mm Headphone output | Dock | microSDXC
- 24 Watt power supply
- 9.7 in x 6.9 in x 0.3 in
- 18.41 oz (1.15 lbs.)
